Build of 1973 Datsun 240Z

Home Upgrade eBrake

Pictures are hyperlinked, please click on picture to see larger version of it

During conversion from drums to disks, the quick way out was to install line lock inline to the rear calipers. problem with that is that you have to pump the pedal to create pressure and lock the line with valve so that the calipers keep pressure on the disk when its park. Second problem is if the valve does have a small leak pressure in the line will release thus disengaging pressure on the rear disk. Its ok if you leave it in gear but if its out of gear the car will roll down the hill.

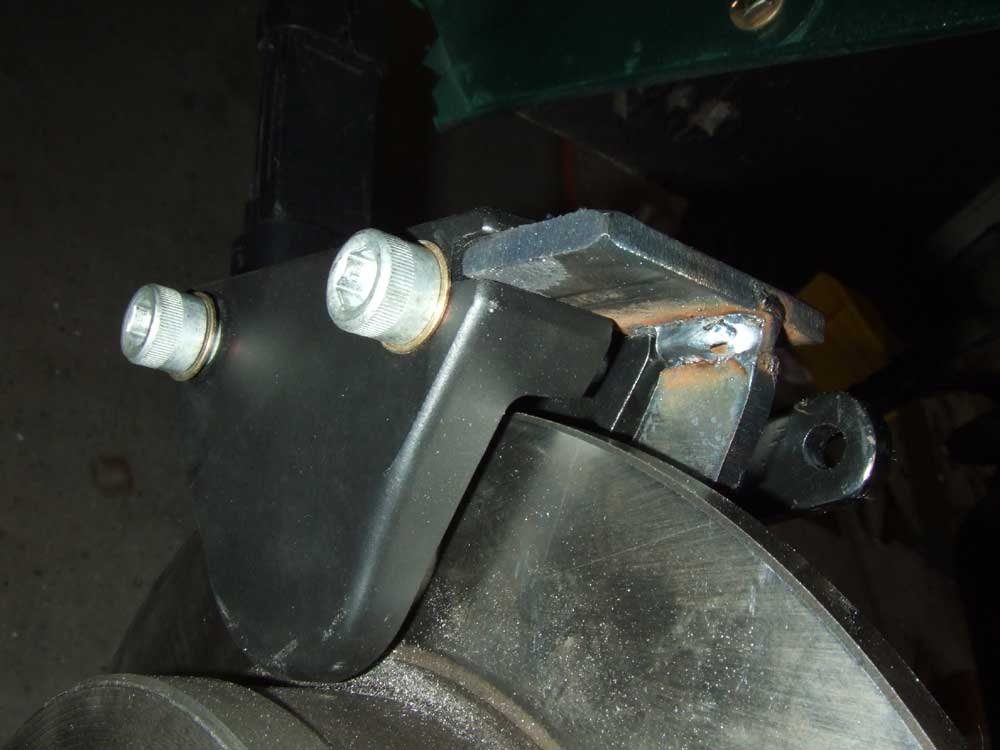

Looked at the Wilwood mechanical Spot Calipers but their mounting was just so odd and would have produced too much rattle not just from the mount option but from the way the caliper was designed and build. Other thing was just the way the cable was attaching to the caliper. It would not have been too terribly bad if the caliper was mounted to a stationary point that had just sliding option to it, but since it was to be mounted on spindle. Cable adjustment would had been a nightmare.


Current  option is again from Wilwood but going with their MC-4 series calipers. All of the deficiencies from the Spot calipers seems like had been resolved though not too sure about the huge adjustment screw in the back of the caliper.

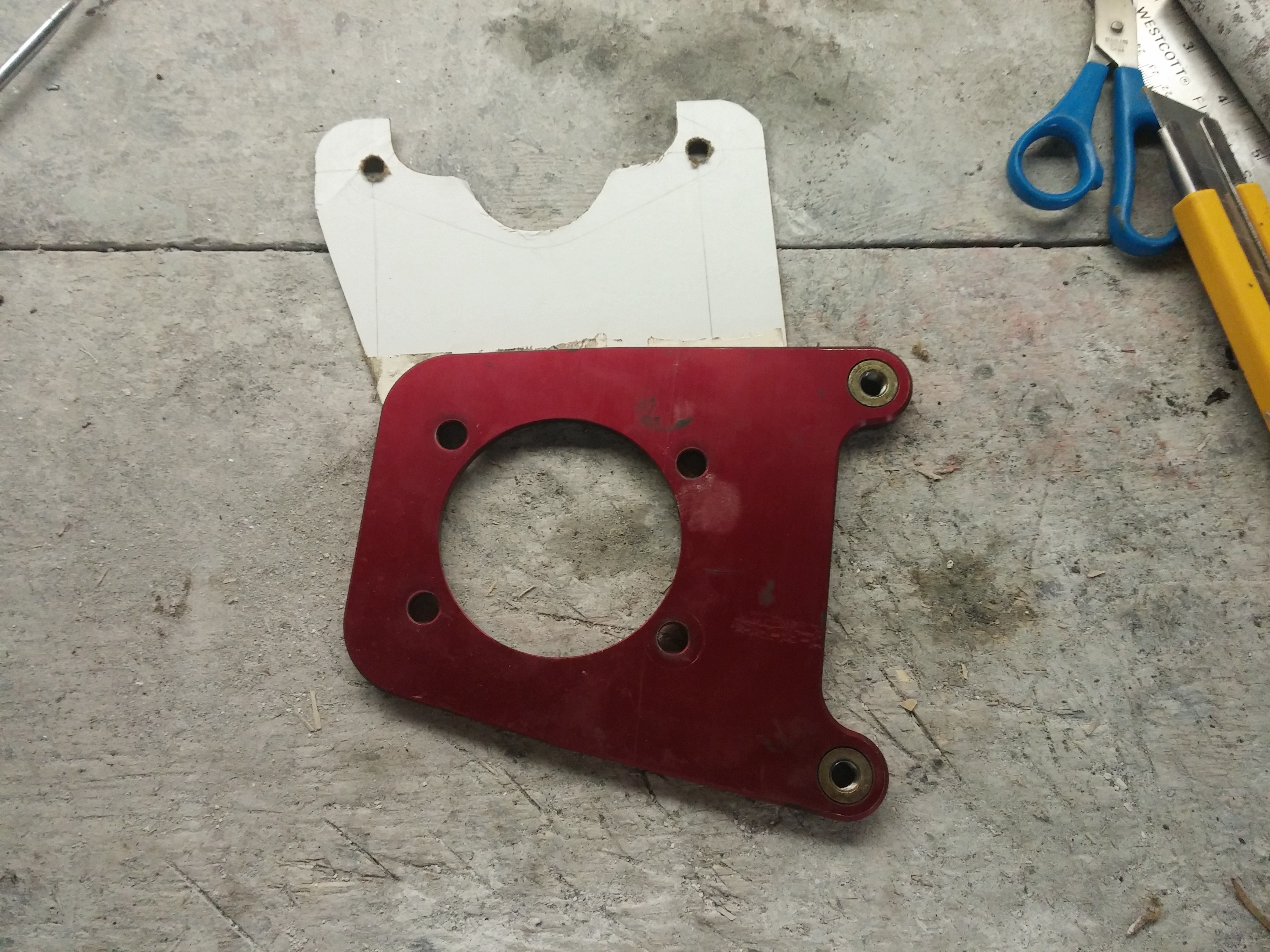

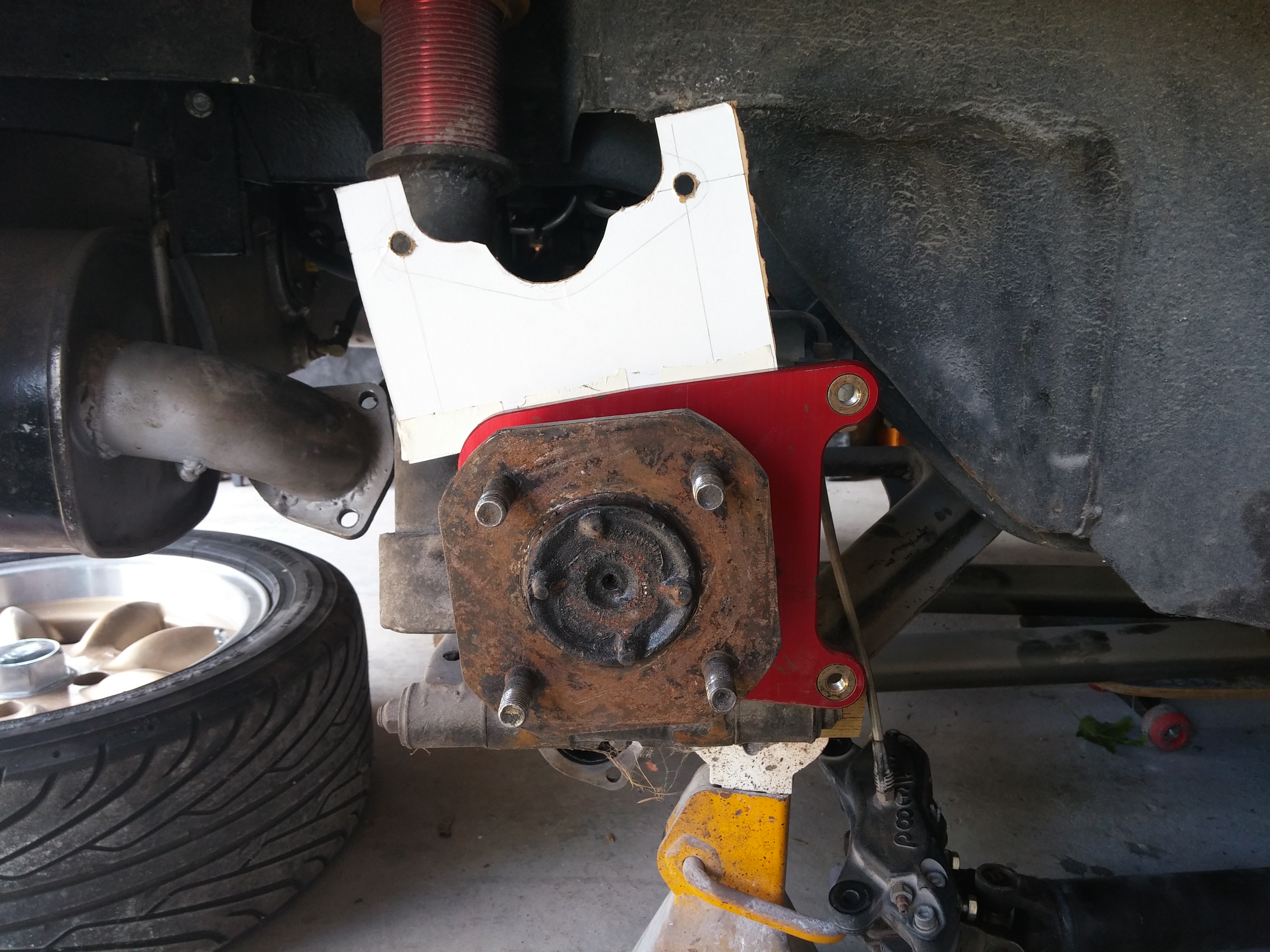

Now that the engine is out in the shop for teardown and overall the car is free to be further stripped down and that it will not be moving its time to rip down into the brake adapter modification.  After making careful cutout around the MC-4 caliper mounting area and making sure body of the caliper clears the caliper was mounted on to the cardboard and a double sided tape was placed on mating surface between cardboard and the current adapter plate. with a 1/8" filler rod as spacer the assembly was placed on top of the caliper and aligned in a way that the adjusting bold in back of the caliper would clear the shock tower the cardboard was glued onto the adapter plate. In this position the up and down motion of the wheel and hub assembly will clear the body of the car and still have clearance for the coilovers  and  quite possibly be able to work with OE spring setup. Now the hard part, as the adapter plate is mounted with 4 bolts to the hub assembly and the only way to retrace the layout of the original plate and the new addition is to completely disassemble the half shaft and remove the stub axle from the carrier. Well it has to be done so off goes everything. Now here is a bit of the sucky part. Off set  for the hydraulic caliper is 3/16" different then the parking caliper which has to be pushed inward forcing to adapter plate to be made of thicker plate. Original plate that ArizonaZ came as is 3/8 in thickness the new one will have to be made out of 5/16 or 3/4" thick material making it thick and will require more machining and also making material bit more expensive.

 After some trial and error and lots measuring, the plate will need to be made out of  1" thick plate machines on both sides to get all of the off sets in right spots and have enough material to hold up both of the calipers.
Next is to make up CAD drawing and off to machine shop and have them cut.

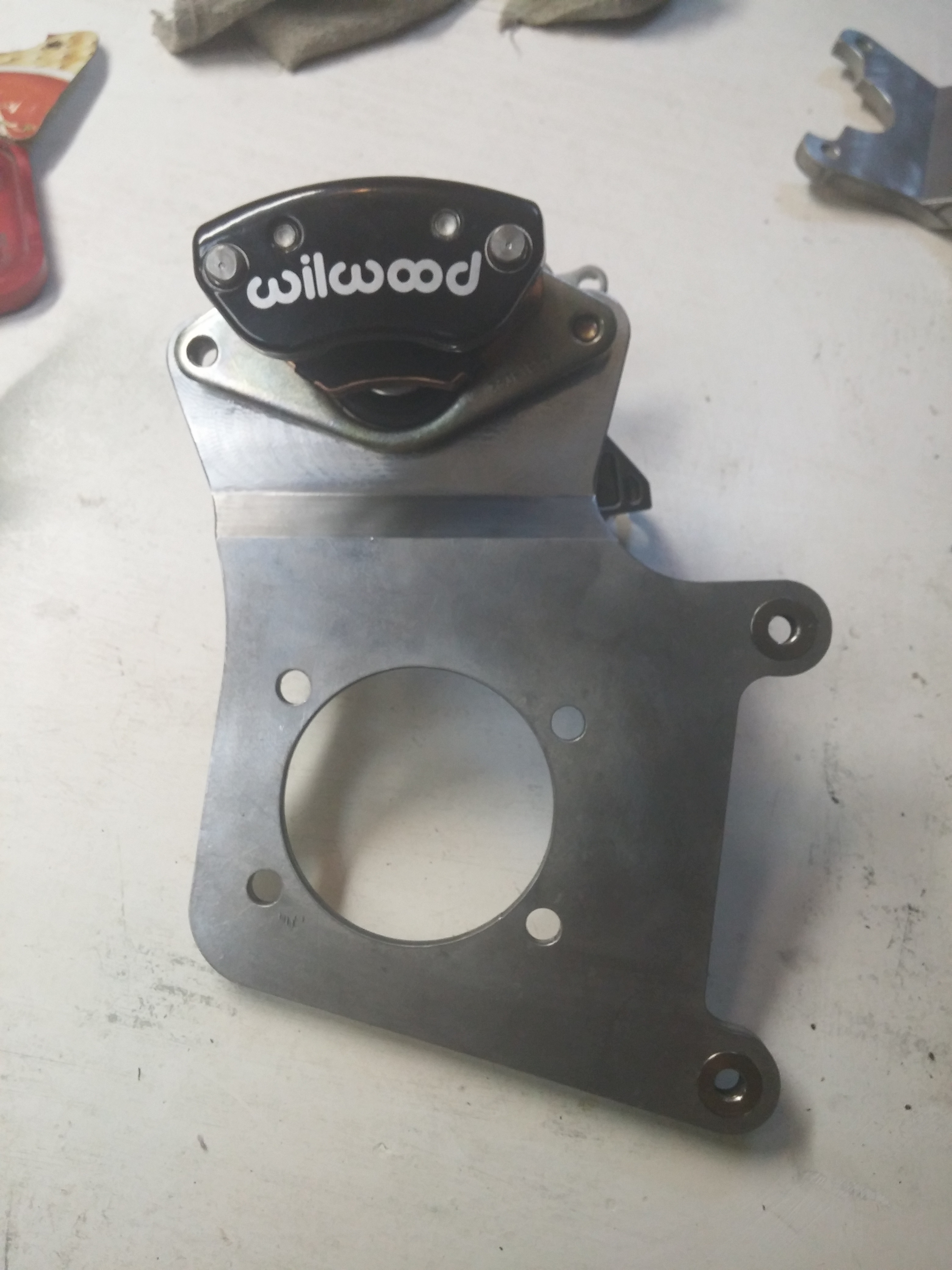

This is the shape of the adapter plate with a side profile that resembles a Z fold. reason for it is due to offset and mounting configurations of the calipers

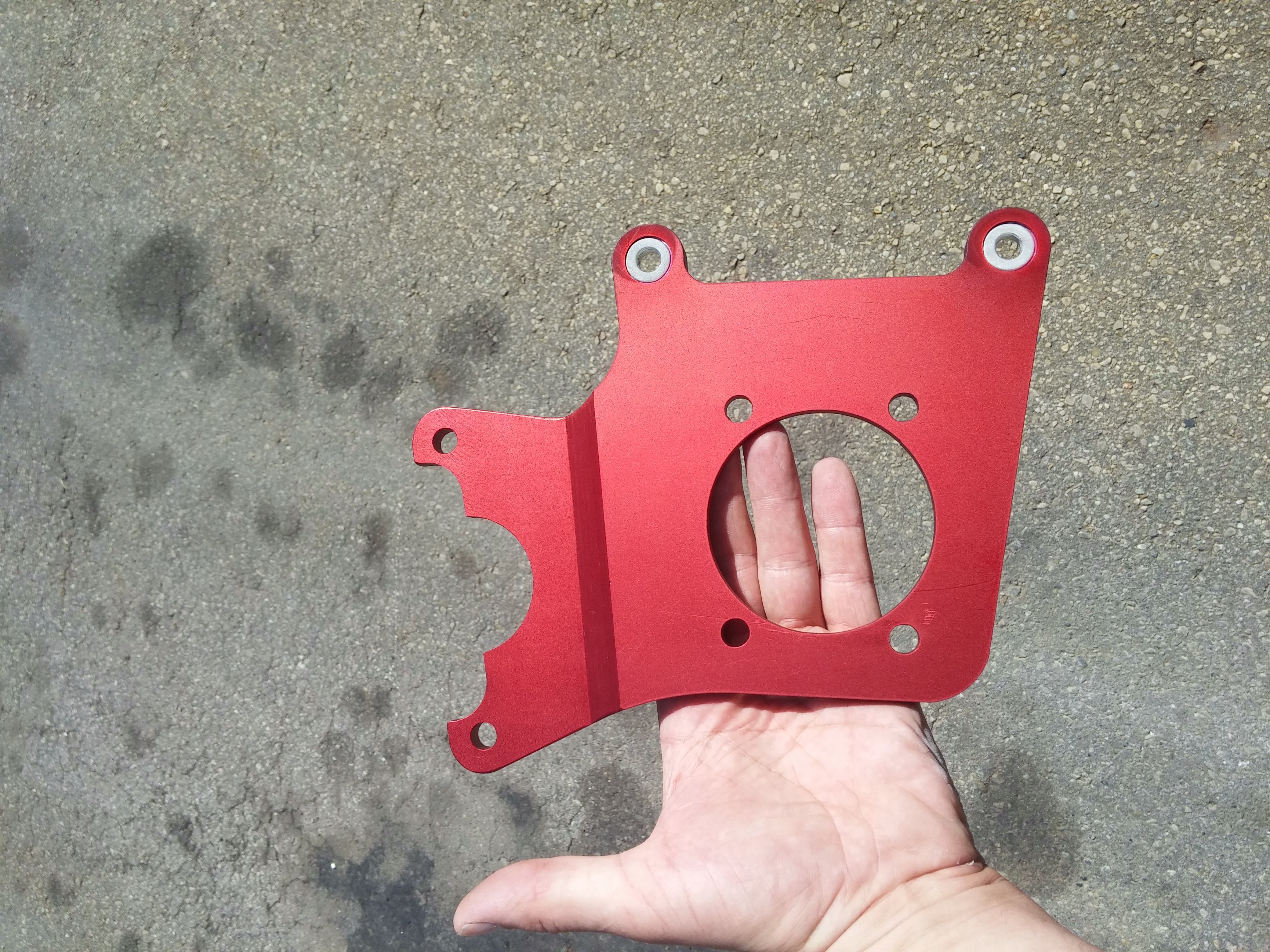

  Out from machine shop, needs some polishing and a nice red anodizing dye to match original color.

There are other setups and not to take them down they are of great design. This design however though its more involved in manufacturing relies on Wilwood mounting bracket which has the floating pins as part of it unlike with other designs the mounting plate is removed and the float pins are threaded directly into the adapter plate. Our design also prevents the adapter from accidentally stripping threads for the slider pins and by using the OE mounting plate the calipers can be much easier taken out and mounted back into the car. Also for anyone that is using a different hat that possibly may have different offset the mount plate can be adjusted (moved out) by shimming the mounting plate with spacers if needed.

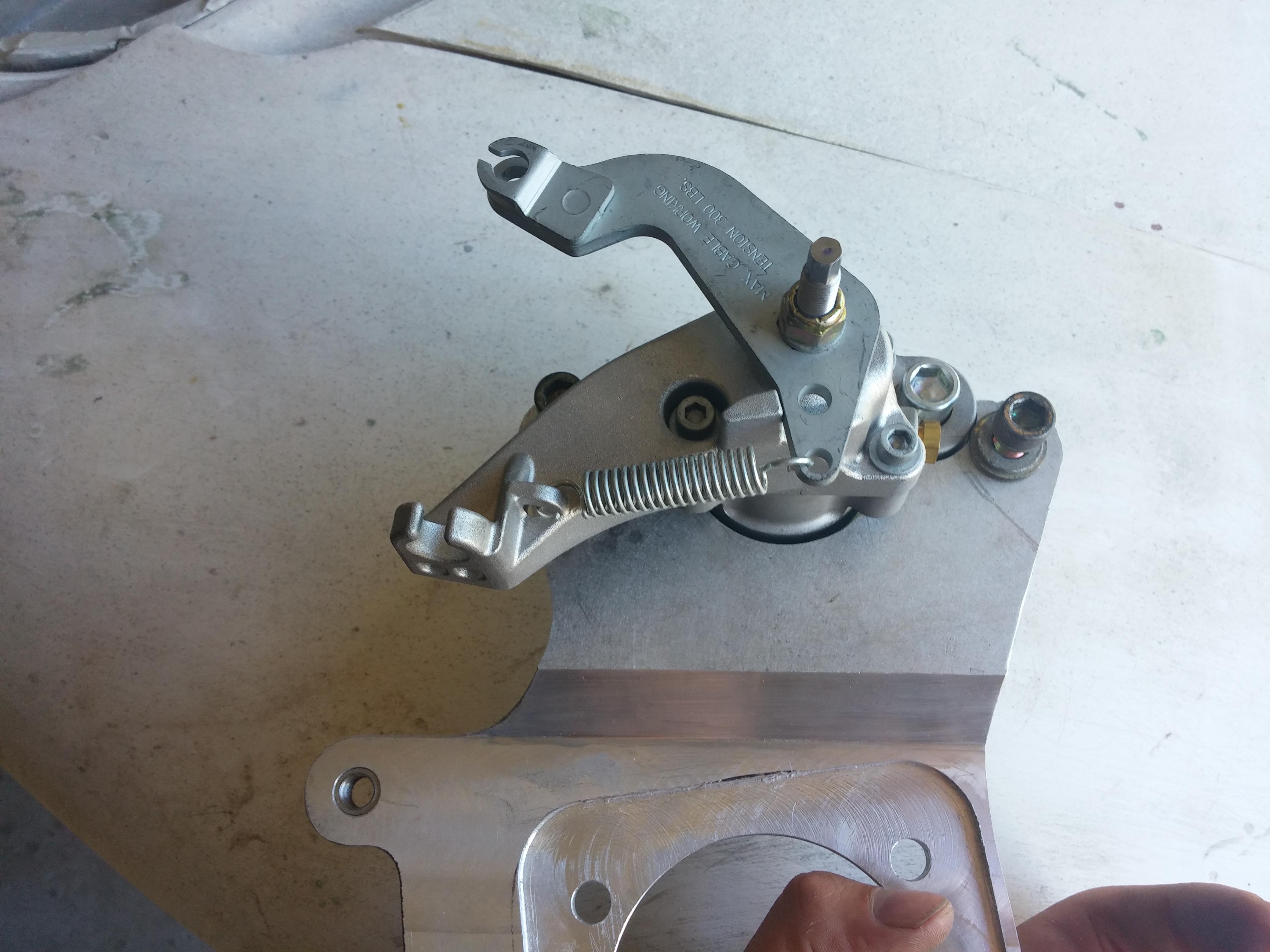

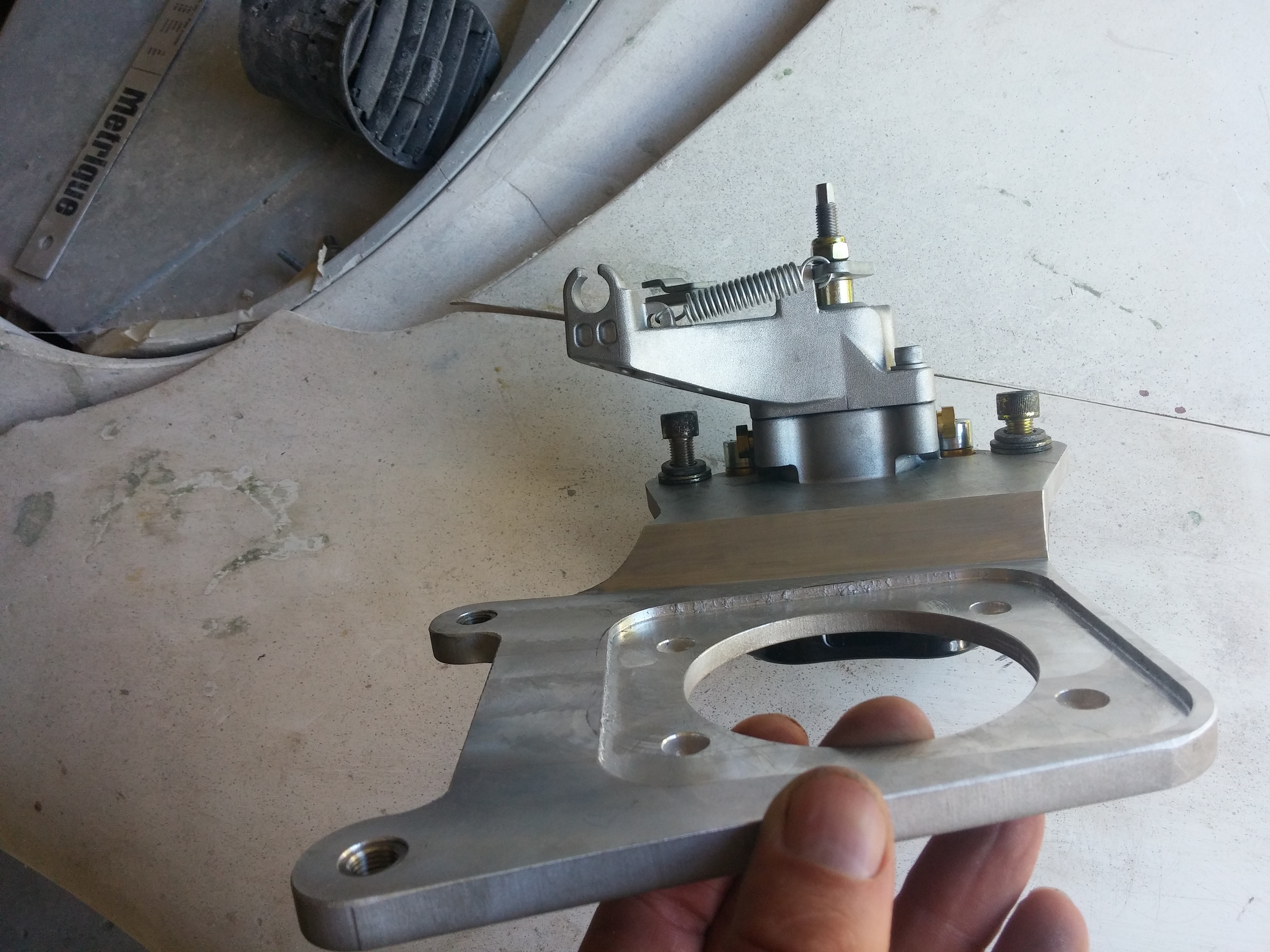

Back view of the adapter plate with MC-4 mounted as to cable mounting  view1  and  view2  mocked up on the spindle.

After anodizing this is how they looked. One problem during the process was discovered that the stainless inserts pressed into the plate where corroded away during electrolysis / plating plating process as stainless steel has different electrical properties.
To correct the problem and as they where made by the machine shop, back they went to have new inserts made and pressed in. Once they where corrected plate was ready for mounting on the hub for final time so that everything can be assembled together.

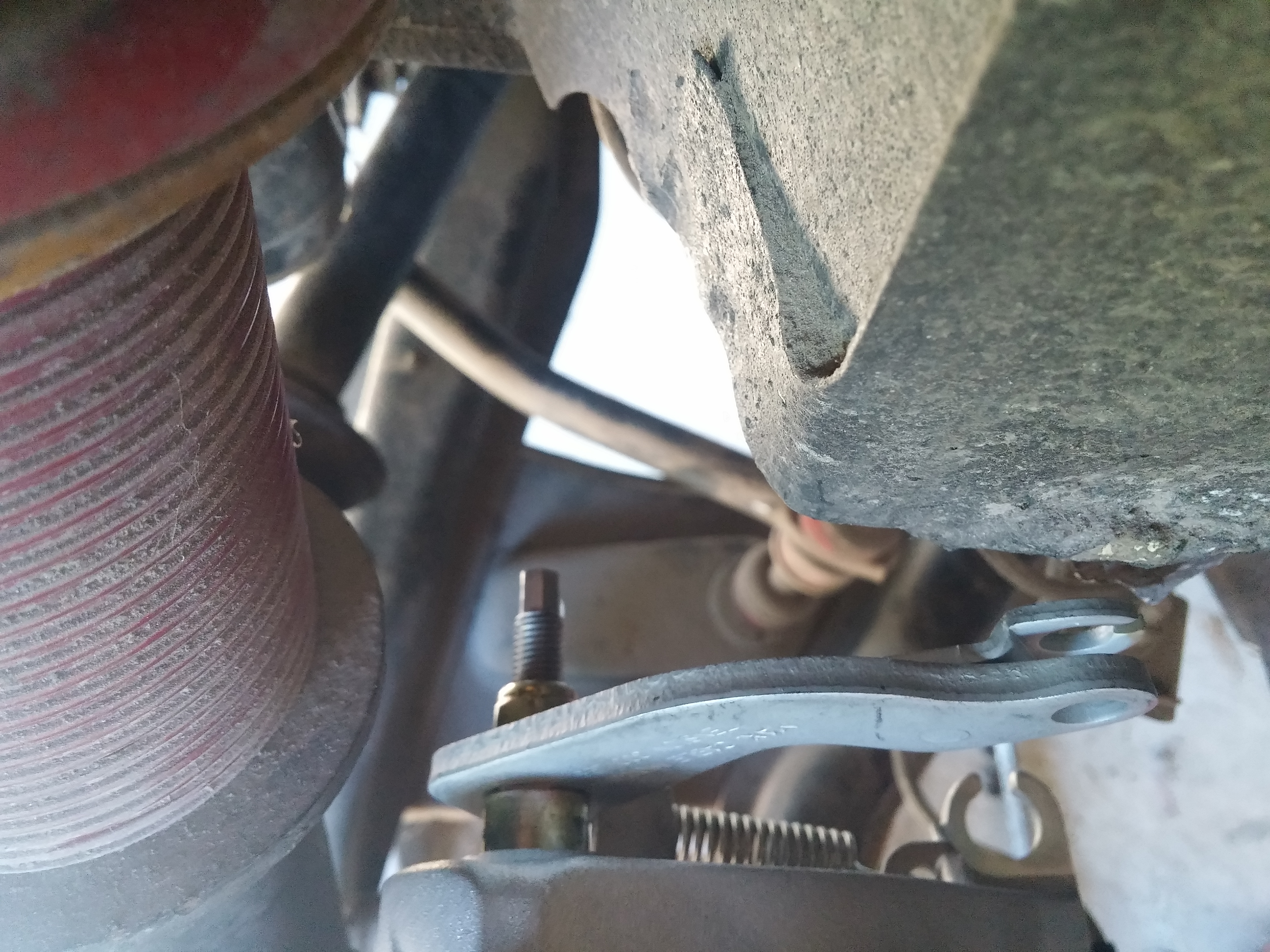

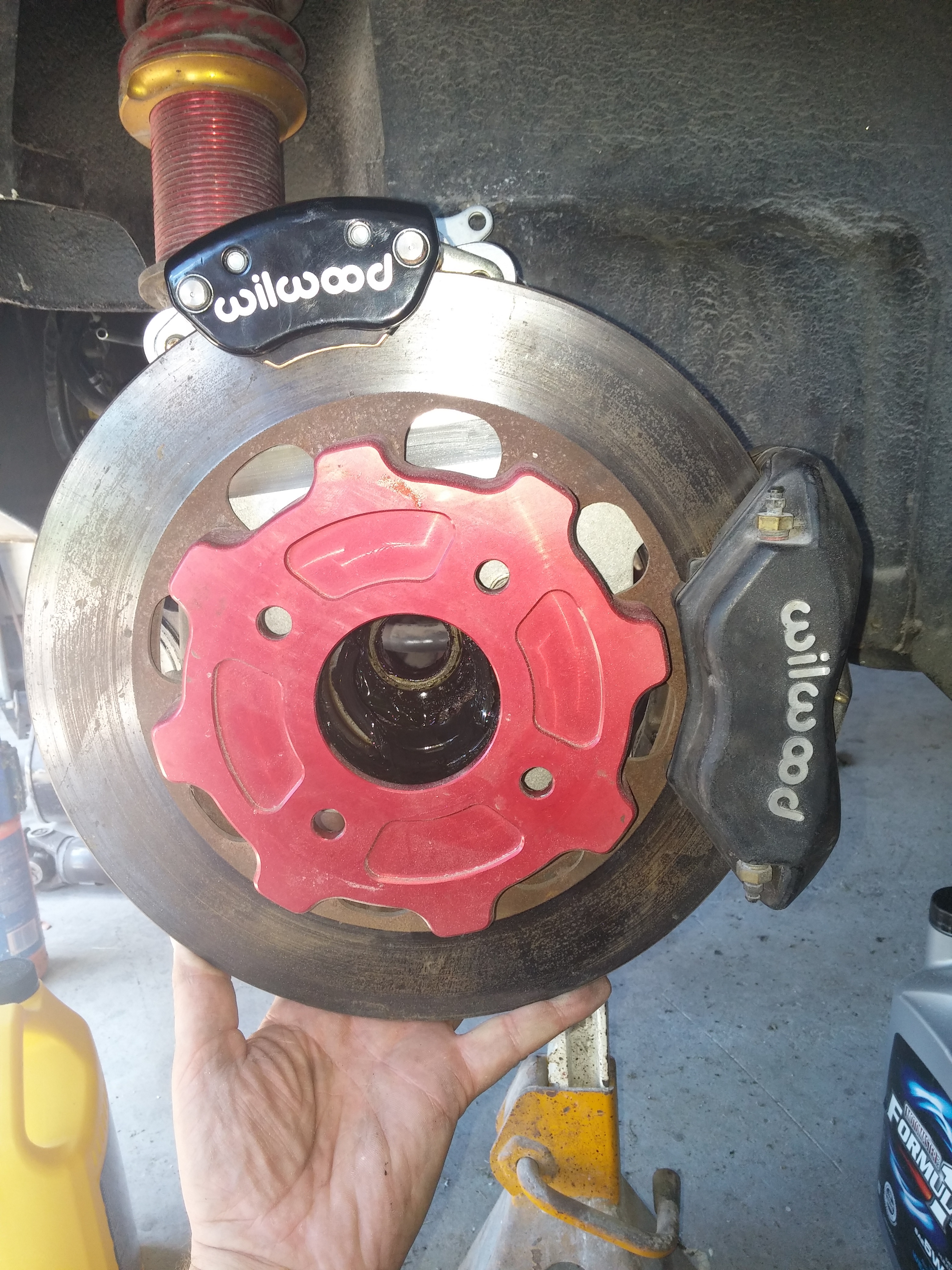

As seen from picture above left. the MC4 caliper was clock'd counter clock wise so that the adjusting screw be located right in the shock tower so that it would avoid hitting the body/chassis and avoiding of readjusting it and deforming the sheet metal and still leaving plenty of clearance for the cable lever.

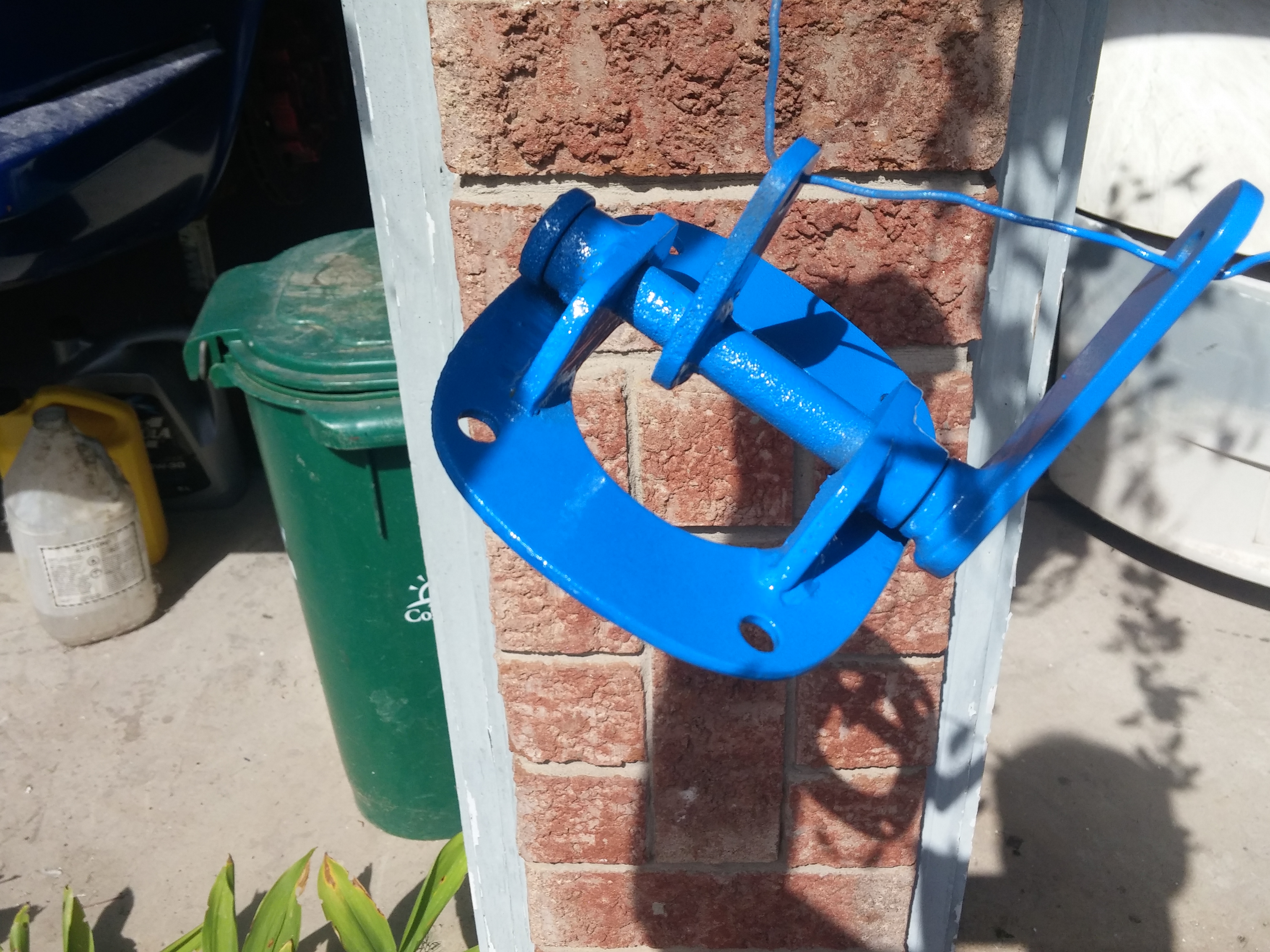

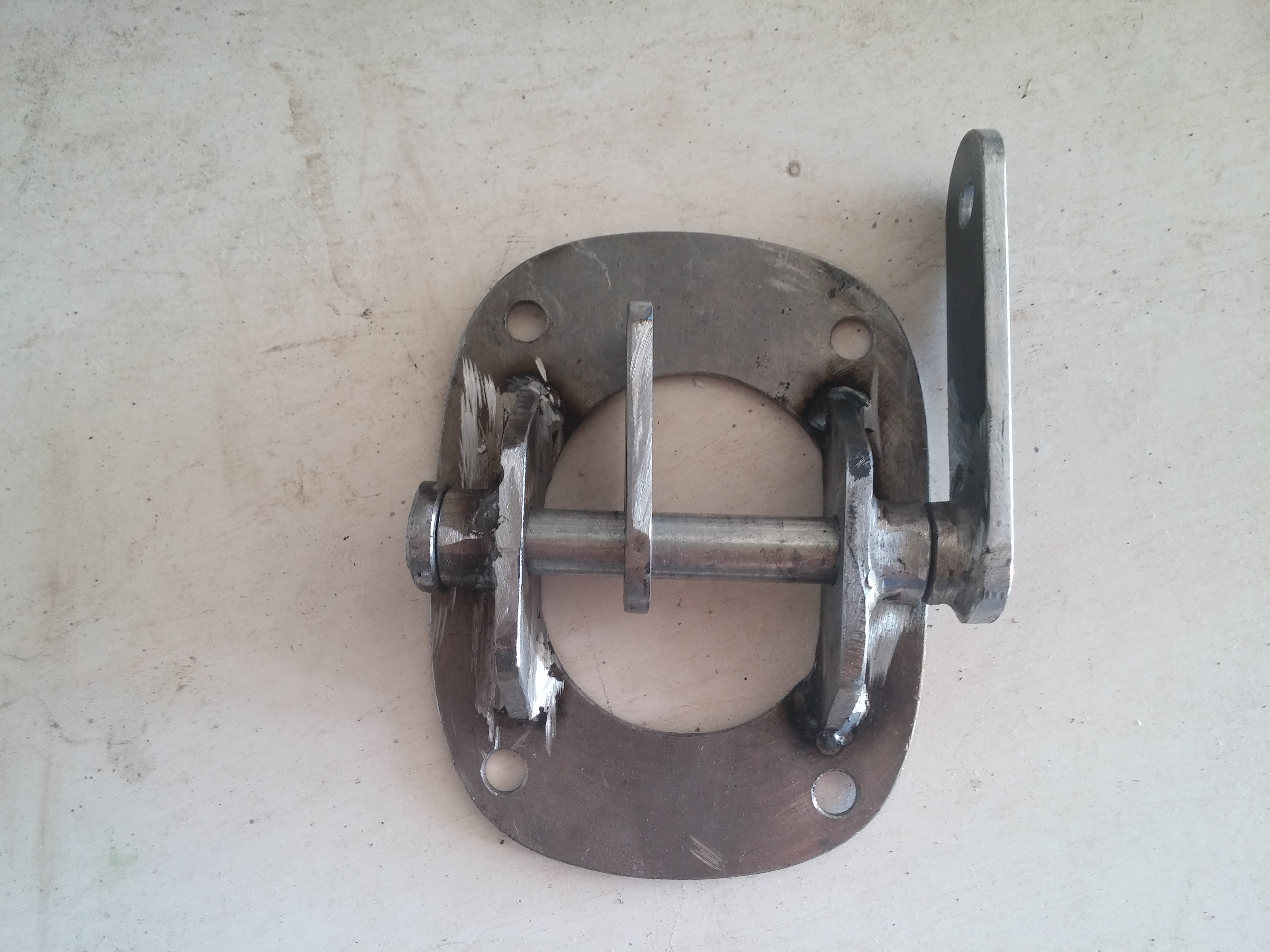

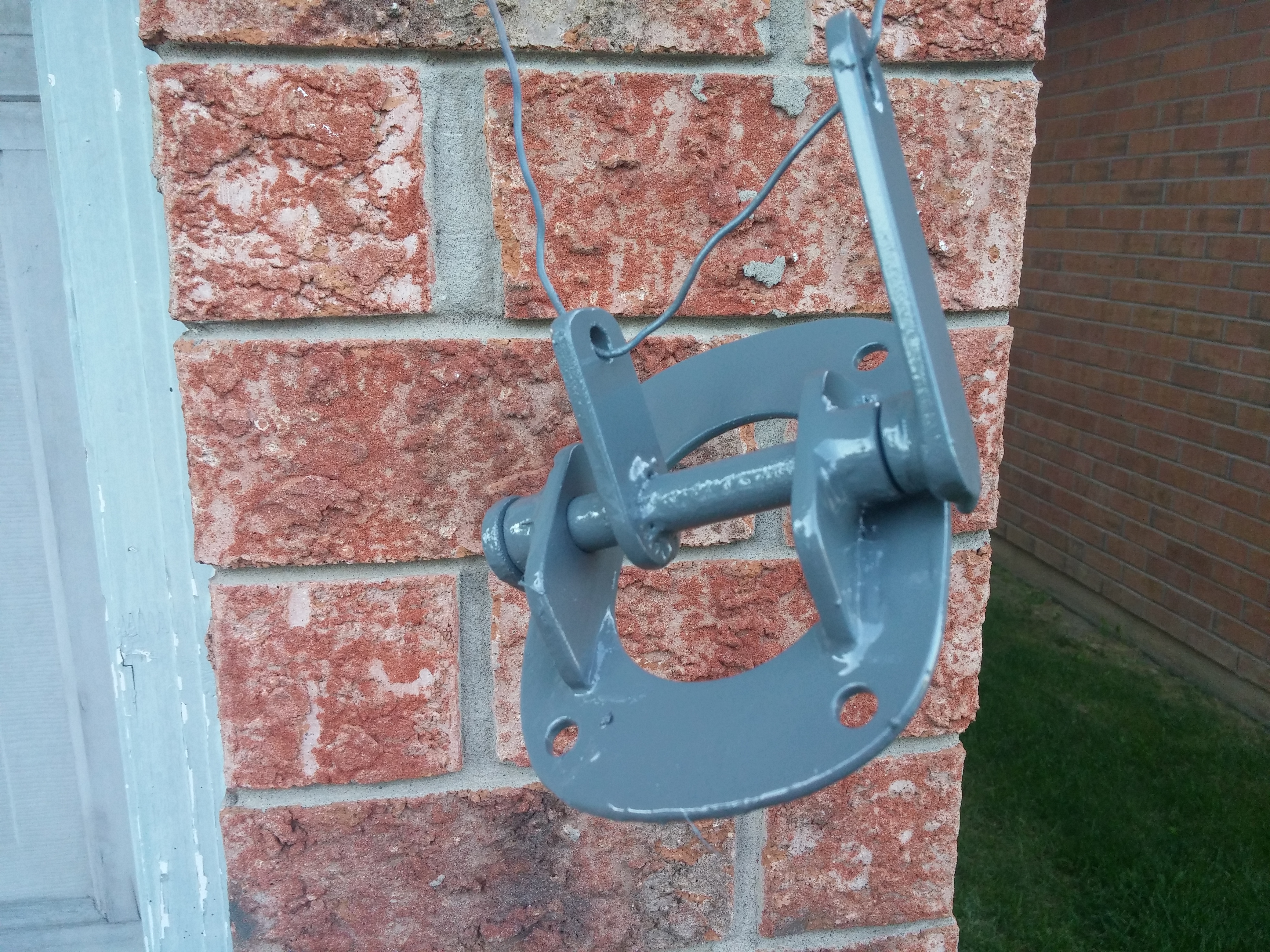

With the handle mounted inside one thing was missing was the cam adapter to cable pull arm. I had misplaced mine during original restoration rebuild. Rather then trying to locate one and not knowing its condition, decided to make one as it easy enough part to make.  Started with base for it having bolts protruding through the original nuts I pressed sheet of paper onto it to get impressions of the exact patterns. Had a shape drawn around it to be fairly close to original plate with outside and inside hole cutout and made the plate out of 3/16' mild steel.  Next was to make the 2 vertical pieces for the cam to go through. Just as with the plate had them cut out from 3/16" plate and welded on 2 nuts after they had been ground to more round shape to give a nicer look and the plate and nut then where drilled to 1/2".  The cam arm it self was made out of 1/2" 6"  long bolt that had smooth shoulder on it. The dead again was ground round and a 5"x1" bar was welded to it to give the cam look going after. With the base and the 2 vertical pieces along with the bolt the base plate was welded having the bolt aligning the 2 vertical pieces for smooth rotation. Last piece was to make the cable pull arm and as the assembly would never come apart trim the excess bolt and cap the other end. Once everything was welded and ground smooth it was primed and painted with engine enamel to make it  fuel and oil resistant. Some pictures are available <here>

Last thing to do was to connect the calipers with the Cam Arm and to do that a Lokar EC-80WTU universal brake cable was used. It comes as a kit with 2 8 foot cables and hardware out of which its only 42" that's needed to interconnect the 2 and that still leaves the cables hanging very long around control arms and under carriage.

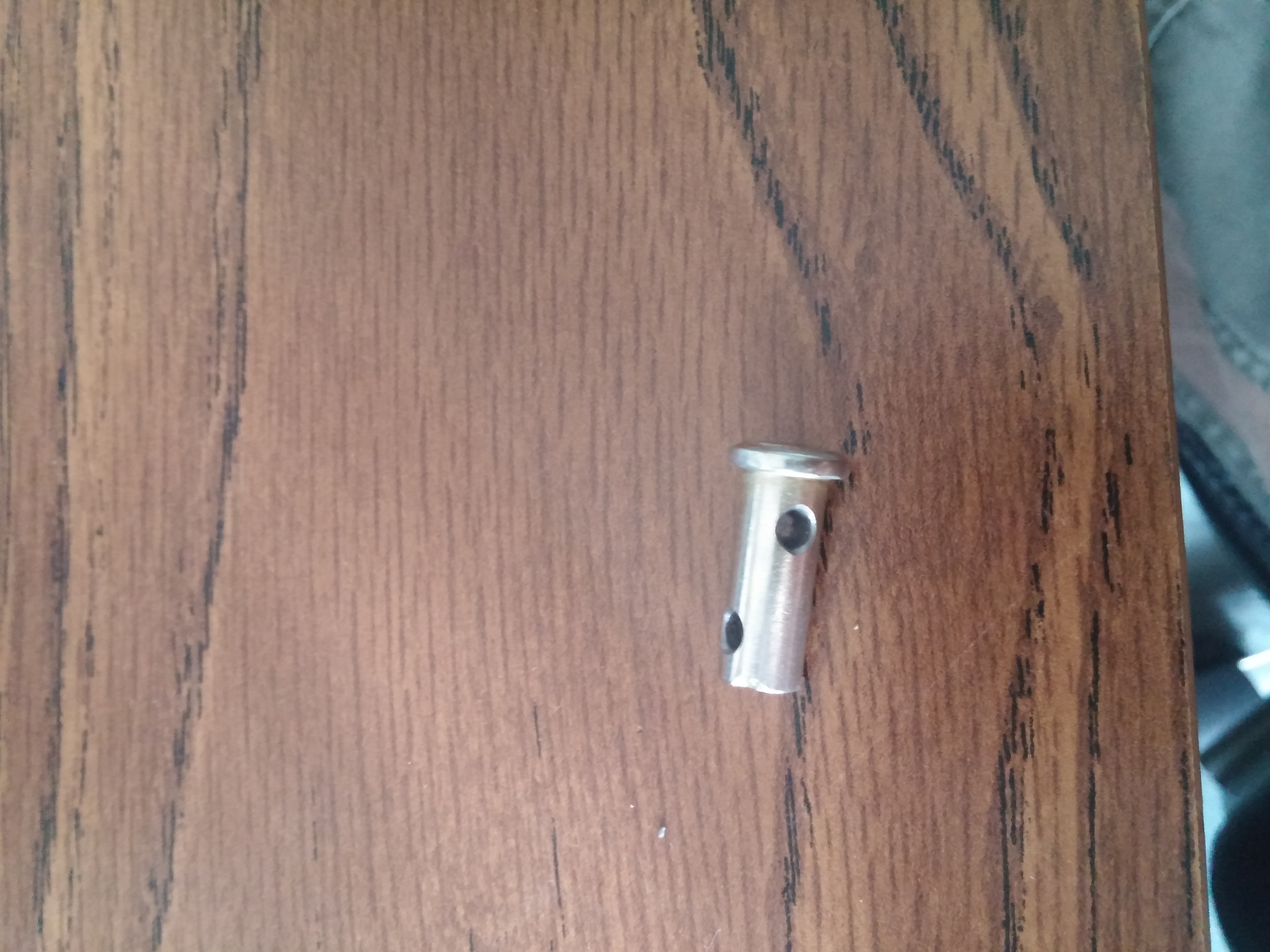

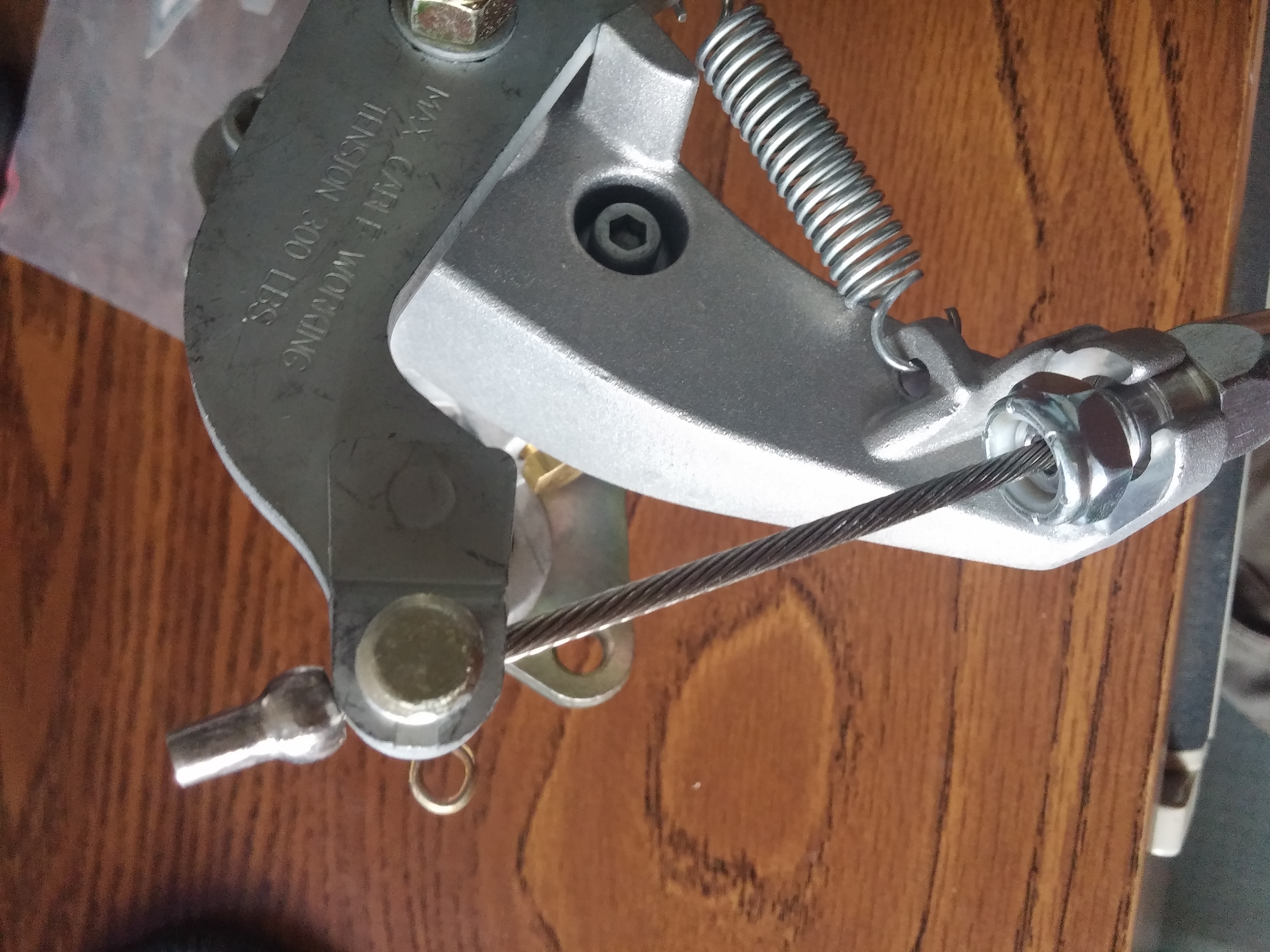

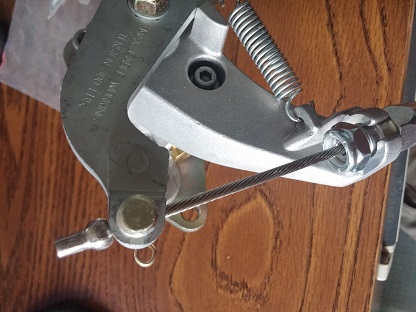

One thing about the cable is that its universal kit so you are pretty much have to adapt it to your needs. Secondly the cable has a ball crimp on caliper end and the MC4 arm has a swivel barrow type mount for it for easy removal of the cable. Unfortunately Lokar does not have a barrow type end for it and their solution is to put a pin through the opening then thread the cable through the pin then into the sheathing of the cable and then cotter pin to make sure not that it will keep the pin inside. Not really the ideal way to mount the cable and if the caliper needs to be replaced for any reason the cam arm on the caliper needs to be removed then reinstalled when replacing with new caliper.   I'll keep on looking for a different cable with end that fits right into the MC-4  and not using the pin.

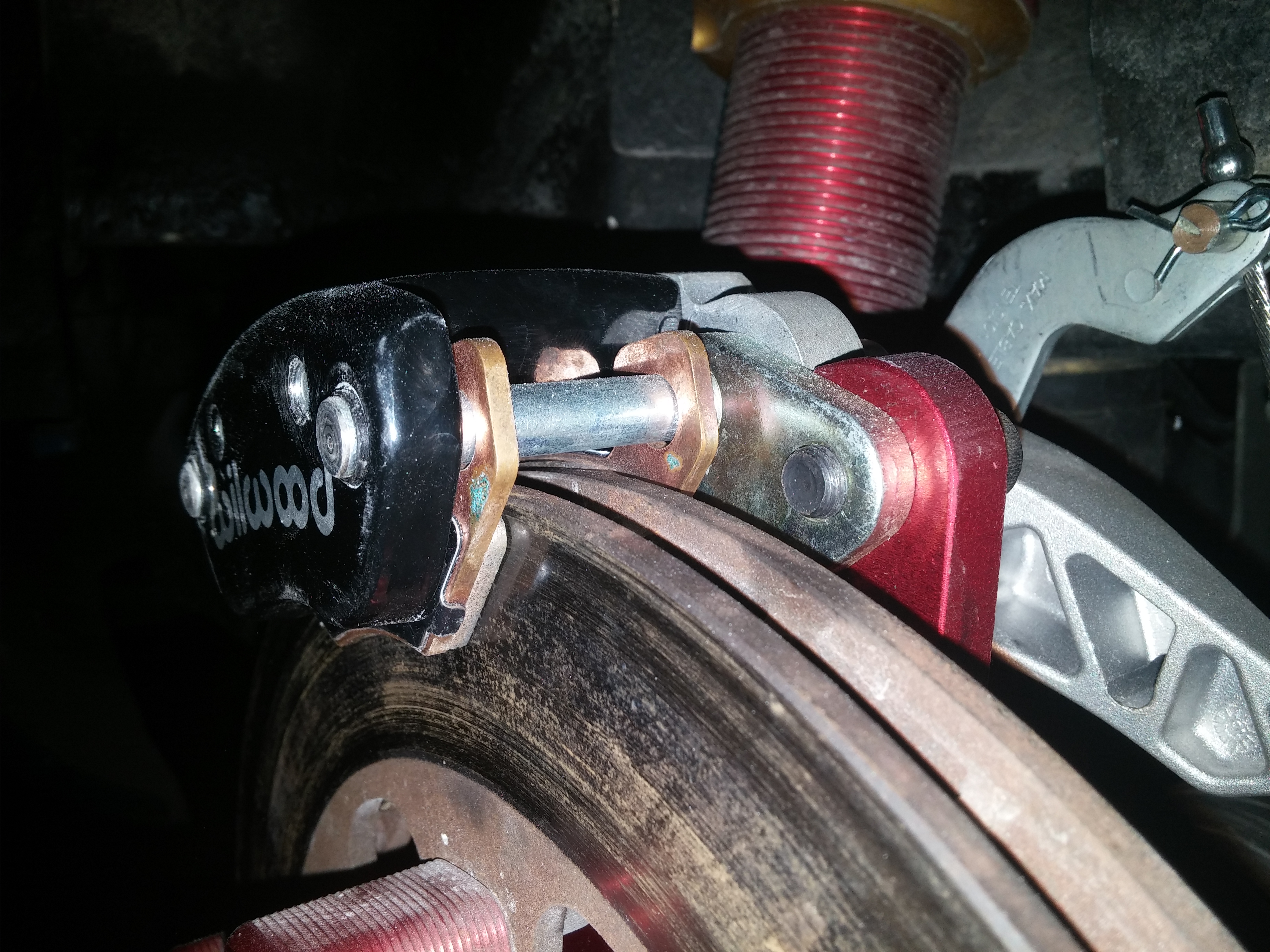

Over all the process and entire exercise of having working not rattling caliper was well worth it.  One thing that needs to be changed on the adapter is moving the mounting holes for the MC4 caliper closer to the center to give that extra clearance for some wheels that may be machined differently. There is 4.5mm clearance from the slider pins to the rotor moving it by 3mm closer may give a better pad surface grip and give that extra clearance to some rims.

One observation, aluminum is very light material, one problem making this bracket from aluminum is that you will need NON crushing  nut inserts because  hat has to be on opposite side of the bracket where the caliper is mounted to so that the insert does not get pulled out.  Its not a very big piece so the weight should not be much of  an issue of having the adapter machined from mild steel or any one daring out of stainless but stainless will come at a price, This will allow for just making a hole in the bracket and tapping it and forgoing with the nut insert.

Gallery of all pictures can be found  < here >

PDF profile model of right flange is < here >   with  <front> and  <side > view of the flange.
Original version 1.0  AutoCAD file adapter plate is <here>
An updated v2.0 PDF file with closer / smaller gap between sliding pin and rotor are found <here> and AutoCAD file  < here >
